Mobilis ELITE

The enclosed condutor bars Elite were the first in the world to be designed with a chamber profile, which is characterized by an extremely high degree of strength and stability. Sophisticated current collector with easily removable brushes, extremely wide accessories and easy installation that can be provided without any special tool - and the company Fels is also thinking for ergonomic and aesthetic aspects - high-quality of plastic materials and color matching of all details make each installation and subsequent use of this trolley impressive enjoyment.

I have a question

Performance

extensive range (20 to 200A)
light, rigid PVC profile
long lines without expansion joint
permanent modularity

Easy maintenance

carbons removable
easy removal of connections

Fast assembling

pre-assembled product (connection screws, protection lips…)
clip-on accessories (tool-free installation)
connections through self breaking screws

Security

protection index IP23 according to EN60529
self-extinguishing materials

Assembly example

Fels

Show products

Models

Innovation, aesthetic

MOBILIS Elite offers ergonomics without forgoing aesthetics. Elegant lines, harmonious colours, and coordinated elements result in a product which is both dynamic and smart, all combining to make this rail an aesthetically successful innovation.

Cellular structure

Fels was the first to introduce optimised cellular structures for the Mobilis range, this giving an excellent rigidity to the PVC profile. The casing is both light and strong and holds either 4 or 5 conductors. Its narrowed lower opening prevents any accidental contact with the inside.

Removable Carbons

MOBILIS Elite has taken maintenance into account from the design stage. So the carbons, the main elements subject to wear, are easily replaced without touching the carriage wiring. They are simply unclipped using a screwdriver.

Temperature range

-20°C to +55°C for usual applications
-20°C to +75°C if required.

Trolley Elite

1 Line element

2 Covering flange

3 End-line feed box

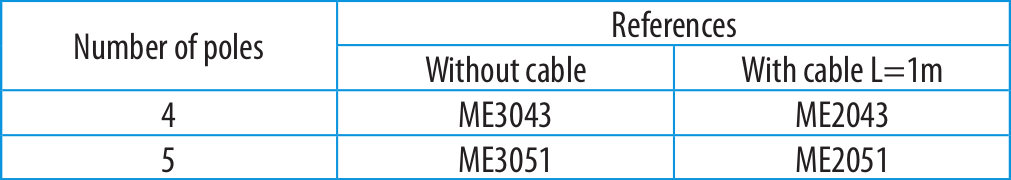

4 Simple trolley

5 Sliding Hanger

6 Fixed Hanger

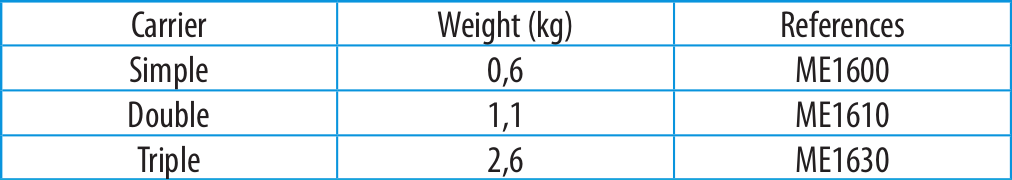

7 Carrier

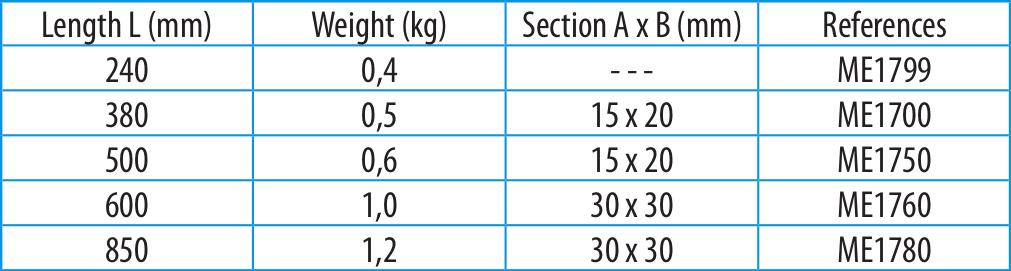

8 Fixing Bracket

9 End cap

Connection using removable self-breaking screw

The feeding box and covering flange are clipped on manually

Its narrowed lower opening prevents any accidental contact with the inside.

So the carbons, the main elements subject to wear, are easily replaced without touching the carriage wiring.

Technique

Connection using removable self-breaking screw

A patented principle of self-breaking screws allows controlled fixings with complete security and reliability. In addition, an improvement makes a later removal easier.

During fitting of line elements, the selfbreaking screw ensures optimum tightening torque for each fixing : once torque is achieved, the screw breaks.
When the screw breaks, a second hexagonal end appears. This makes subsequent removal easier, using a simple key.

Degree of protection: choose high performance

MOBILIS Elite makes the user's choice simpler by offering a complete range of accessories, all ensuring protection of the line against rain (IP23), thanks to an integrated watertight system.

Accessories quickly fitted and removed

For easier fitting and maintenance, the main accessories have been designed for simpler, quicker, tool-free installation. The feeding box and covering flange are clipped on manually. However, they cannot be removed without the use of a tool, in accordance with regulations.

Individual parts of the Elite trolley

Line element

Thermoplastic - Self-extinguishing
Standard length 4m, 3m, 2m, 1m
Special length on request
Max. rated operational voltage: 750 V

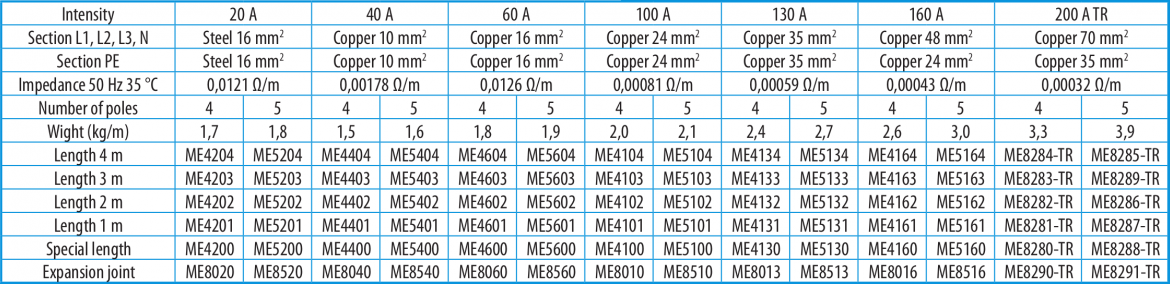

References below the next image

Expansion joints

To install in the middle of trolley
On request
References hereunder

Covering flange

Thermoplastic - Self-extinguishing - IP 23
Weight: 0,1 kg

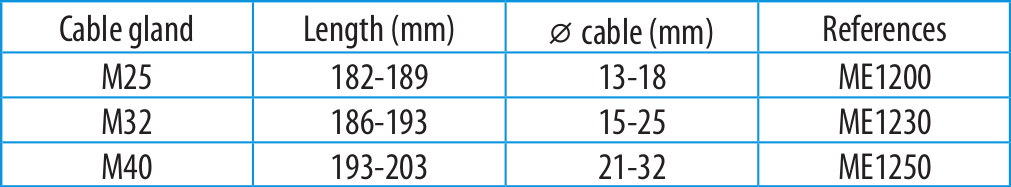

End-line feed box

M25/M32/M40

Thermoplastic - Self-extinguishing - IP 23
Intensities 20, 40, 60, 100A
Possible bottom outgoing
Weight: 0,4 kg
Please provide cable eye stiffeners Ø 5 for connection.
Connecting screws not included

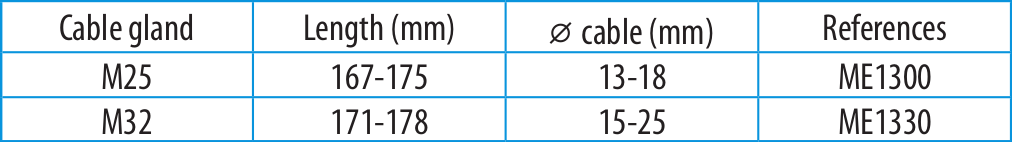

In-line feed box

M25/M32

Thermoplastic - Self-extinguishing - IP 23
Intensities 20, 40, 60, 100A
Weight: 0,3 kg
Please provide cable eye stiffeners Ø 5 for connection.
Connecting screws not included

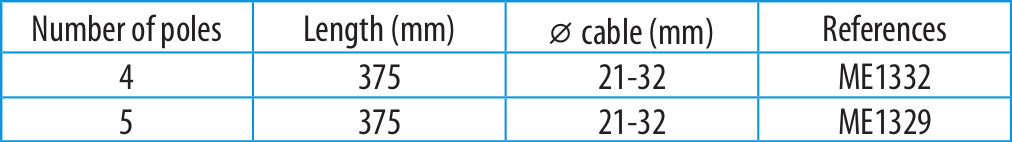

In-line feed box

M40

Thermoplastic - Self-extinguishing - IP 23
For the intensities 20, 40, 60, 100A
Weight: 1,7 kg

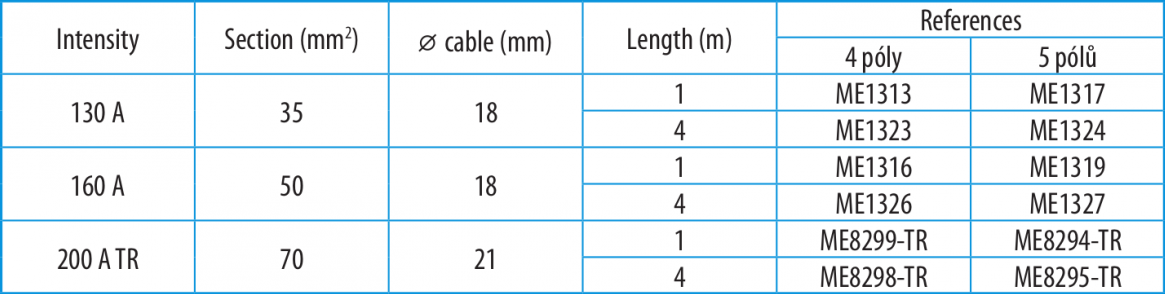

Feed box

130 A/160 A/200 A

Premounted on 1 m or 4 m line element
Maximum weight : 130 A - 15 kg, 160 A - 20 kg, 200A - 23 kg (including connecting cables, length 2 m)
Use 2 hangers
Connecting box aside required
